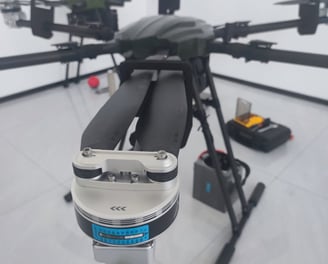

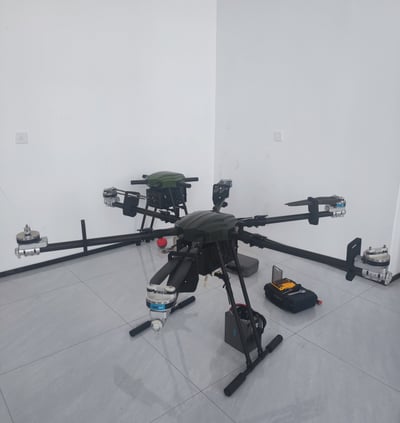

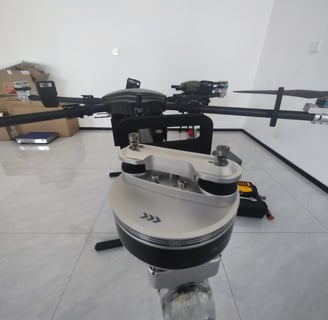

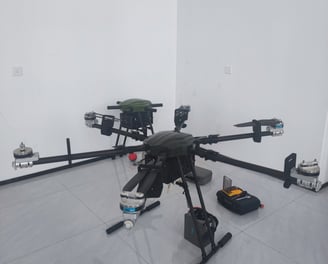

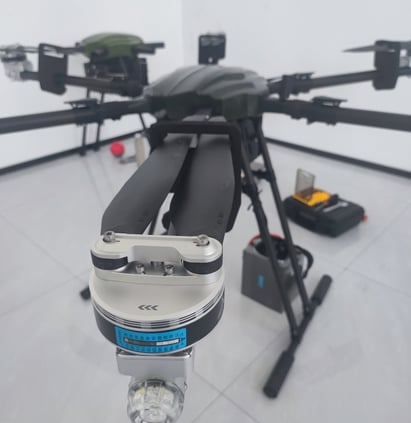

ZZK60 Hexacopter Drone
Super strong load and endurance performance: supports a maximum mission load of 20kg, an empty endurance of 70 minutes, and a full endurance of 30 minutes, meeting the needs of long-term operations. The platform supports rapid interchange of multiple loads and simultaneous mounting of multiple loads on a single platform, providing flexible customization solutions for police, emergency, firefighting and other industries.
Industrial-grade fuselage design: adopts aviation aluminum alloy and carbon fiber composite technology, with both toughness, lightness and high strength characteristics, adapting to complex environments such as high altitude and strong wind, ensuring stable flight attitude and long-lasting endurance.
Double guarantee of safety and precision: optional millimeter-wave obstacle avoidance radar to improve flight safety, and anti-interference satellite guidance module to enhance positioning and anti-interference capabilities; supports RTK module and PPK/RTK fusion operation mode, combined with professional ground station software, to achieve centimeter-level high-precision positioning and data collection.
Multiple scene adaptation: widely used in police reconnaissance, forestry fire prevention, emergency rescue and other fields, with modular design and high-performance configuration, to provide industry users with a reliable aerial work platform.
Product Overview
Equipment Specifications
1) Wheelbase: 1900mm
2) Empty weight: 17.85kg (excluding battery)
3) Maximum take-off weight: 50kg
4) Power system: electric
5) Unfolded dimensions: 1900mm×1900mm×850mm
6) Tool-free folding and disassembly design
Flight indicators
1) Endurance (load weight @ lithium battery powered flight time): no load @ 70min; 20kg @ 30min;
2) Maximum take-off and landing altitude: 5000m
3) Cruising speed: 0~15m/s
4) Flight mode: attitude, fixed point, autonomous
5) Take-off and landing mode: vertical take-off and landing
Performance Indicators
1) Wind resistance level: Level 6
2) Rain resistance level: 4mm/min
3) With low voltage return function
4) With wireless control signal disconnection and autonomous return function
5) With optional millimeter wave radar obstacle avoidance function
Use indicators
1) Maximum load: 20kg;
2) Deployment: Ready to use, tool-free and quick to assemble and disassemble;
3) Deployment time: ≤5 min;
4) RTK hovering accuracy: horizontal ±0.15cm; elevation ±0.3cm
5) Positioning system: BDS+GPS+GLONASS and other multi-system work
Smart Battery
1) Dimensions 250*163*142mm
2) Battery type: Lithium polymer
3) Battery voltage: 14S
4) Battery weight: 12.3kg
5) Energy density 298wh/kg
Smart Charger
1) Maximum output power: 3000W
2) Charging current: Max50A, charging current adjustable
3) Charging balance accuracy: plus or minus 20mV
4) Number of cells: 14-18S
5) Working environment temperature: 0℃-+40℃
6) Weight: 6.6kg
7) Display: LCD screen window, the product can display the battery single cell voltage and total voltage in real time during charging
8) Appearance size: 303*182*213mm
Smart remote control
1) Model: H16
2) Operating voltage: 4.2V
3) Frequency band: 2.400-2.483GHz
4) Size: 272*183*94mm
5) Upgrade: APP online upgrade
6) Battery life: 6-20 hours
7) Charging interface: TYPE-C
8) Weight: 1034g
9) RF power: 20DB@CE/23DB@FCC
10) Frequency hopping: New FHSS frequency hopping
11) Battery: 20000mA/H
12) Communication distance: 8-10km
